Bug 2763 - Texts exporting from FMX to SVG
Summary: Texts exporting from FMX to SVG
Status: RESOLVED FIXED
Alias: None
Product: FireMonkey TeeChart
Classification: Unclassified
Component: Export (show other bugs)
Version: 42.241021
Hardware: PC Windows
: --- enhancement
Target Milestone: ---
Assignee: yeray alonso
URL: https://www.steema.com/support/viewto...
Keywords:
Depends on:
Blocks:

Reported: 2025-03-12 09:21 EDT by yeray alonso
Modified: 2025-04-07 08:43 EDT (History)
1 user (show)

See Also:
Chart Series: ---
Delphi / C++ Builder RAD IDE Version:

Attachments
test project (1.46 KB, application/x-zip-compressed)
2025-03-12 09:21 EDT, yeray alonso 		Details
screenshot (135.38 KB, image/png)
2025-03-12 09:21 EDT, yeray alonso 		Details
View All Add an attachment (proposed patch, testcase, etc.)

Note You need to log in before you can comment on or make changes to this bug.
Description yeray alonso 2025-03-12 09:21:03 EDT
Created attachment 1085 [details]
test project

As the customer reports in the forums:

- Fonts in the SVG appear larger than on screen – The font size in the generated file is different from what is displayed in Delphi.

- Centered axis titles do not work properly – Even when setting Title.Position := tpCenter, the titles are not aligned correctly.

- Legend positioning issues – The legend's position in the SVG does not match what is shown on screen.

See the project attached and the screenshot.
Comment 1 yeray alonso 2025-03-12 09:21:26 EDT

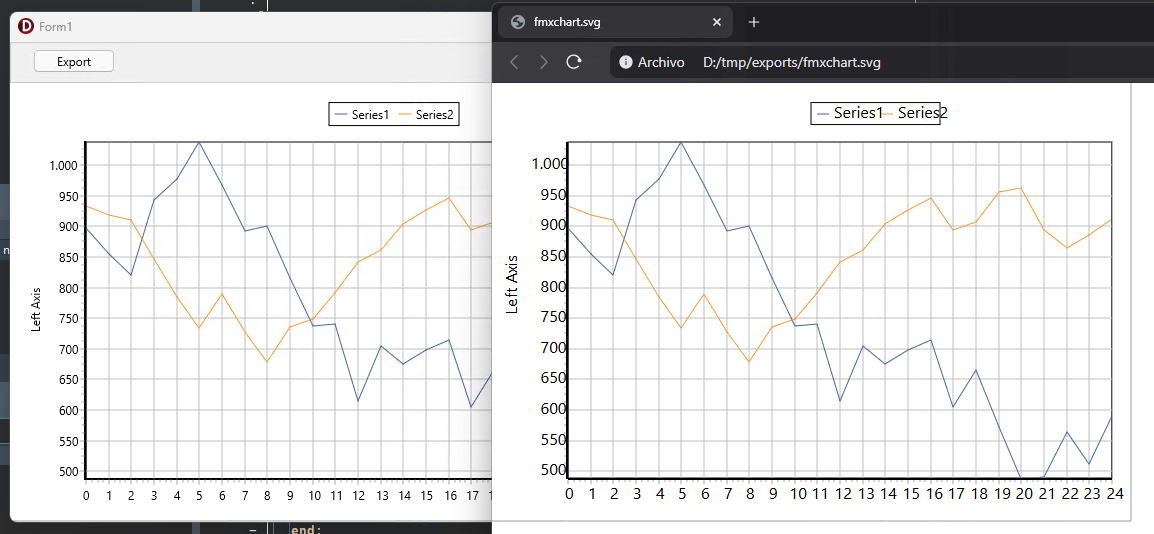

Created attachment 1086 [details]
screenshot
