Bug 2595 - Axes Grids not painting on Chart Walls
Summary: Axes Grids not painting on Chart Walls
Status: RESOLVED FIXED
Alias: None
Product: .NET TeeChart
Classification: Unclassified
Component: .NET 5.0 (show other bugs)
Version: unspecified
Hardware: PC Windows
: --- normal
Target Milestone: ---
Assignee: Steema Issue Manager
URL: https://steema.com/support/viewtopic....
Keywords:
Depends on:
Blocks:

Reported: 2023-03-20 12:42 EDT by christopher ireland
Modified: 2023-03-20 12:47 EDT (History)
0 users

See Also:
Chart Series: ---
Delphi / C++ Builder RAD IDE Version:

Attachments
Screenshot (129.69 KB, image/png)
2023-03-20 12:42 EDT, christopher ireland 		Details
View All Add an attachment (proposed patch, testcase, etc.)

Note You need to log in before you can comment on or make changes to this bug.
Description christopher ireland 2023-03-20 12:42:25 EDT
Created attachment 1040 [details]
Screenshot

Using TeeChart for .NET 6.0 in Windows Forms, when we run code such as the following:

        private void InitializeChart()
        {
            tChart1.Aspect.View3D = true;
            tChart1.Aspect.Orthogonal = false;
            tChart1.Aspect.Chart3DPercent = 100;
            tChart1.Aspect.Zoom = 80;

            tChart1.Axes.Left.Grid.Visible = true;
            tChart1.Axes.Right.Grid.Visible = true;
            tChart1.Axes.Top.Grid.Visible = true;
            tChart1.Axes.Bottom.Grid.DrawEvery = 1;
            tChart1.Axes.Bottom.Grid.Visible = true;
            tChart1.Axes.Depth.Visible = true;

            tChart1.Tools.Add(typeof(Rotate));
            tChart1.Series.Add(typeof(Points3D)).FillSampleValues();
        }

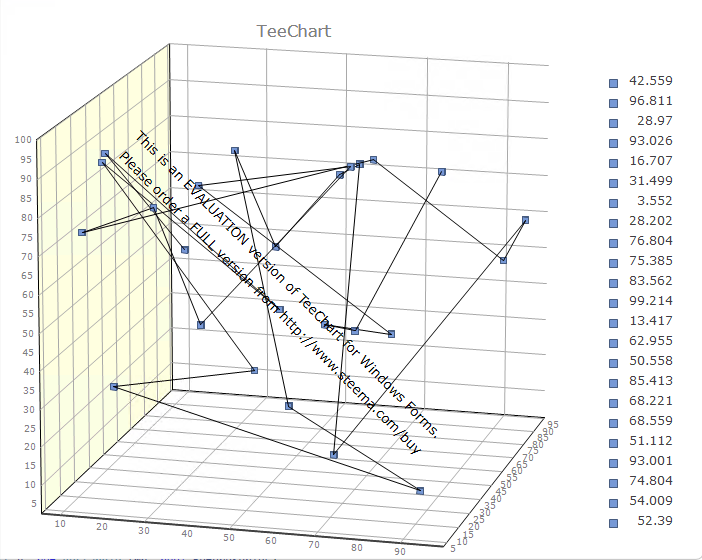

We obtain the image given by our client here:
https://steema.com/support/viewtopic.php?f=4&t=17868

This works as expected in .NET Framework 4.0 Windows Forms.
