Tutorial 3 - Chart Paging

If the data source for your Chart contains more data than can be legibly displayed on one Chart screen you may wish to divide the Chart into pages that can be leafed through. This can be achieved via the Chart Editor or programmatically.

Paging with the Chart Editor

Page sizes may be defined with the Chart Editor. It will still be necessary to add paging buttons to your project or you could make the Chart Editor available at runtime to allow users to change pages with the Editor.

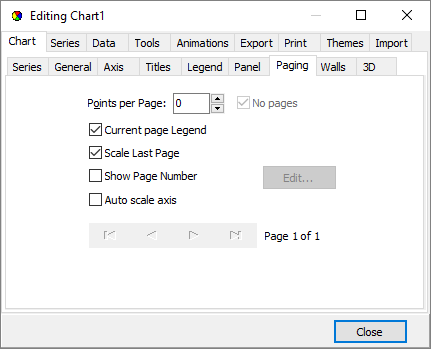

At design time, select the Paging page in the Chart Editor.

In the Points per Page: box, type (or scroll to) the number of Series points you wish to see on the Chart page. If you're coding the data values for the Series, the navigation buttons will not be highlighted until you run the project, populate the Series and show the Chart Editor at runtime. If you are connected to a Datasource you should see paging take effect immediately at design time.

Runtime:

To access paging properties via the chart editor at runtime use the EditChart or EditDBChart methods.

e.g. (You need to add EditChar and Editpro to the uses part of your project)

EditChart(Self, Chart1);

Paging with the TChartPageNavigator component

The TChartPageNavigator component offers easy intuitive Chart page navigation, similar to existing navigators for database recordsets.

Set the Navigator's Chart property to the Chart Panel you wish to Page.

Paging by code

Paging properties and methods are available via the TChart component. See the Page property

Steps required to add paging to your Chart:

1. Define Points per page

Use MaxPointsPerPage to define the number of points to display on each page.

e.g.

Chart1.MaxPointsPerPage := 10;

2. Add Navigation buttons to the Chart's Form.

Example:

First Page

Chart1.Page := 0;

Advance a page

Chart1.NextPage;

Go to a previous page

Chart1.PreviousPage;

Last Page

Chart1.Page := Chart1.Numpages;

3. Decide what to do with the last page.

The last page is unlikely to have exactly the correct number of points to match the point quantity in the other Chart pages. You may choose to Scale the Last page which will 'best fit' the remaining points to the page, adjusting the axis scale accordingly, or you may treat the page as previous pages with the same number of points which may leave the last page rather empty if there are not many points on the page.

Chart1.ScaleLastPage := False;   (default = True)



4. Show the user a page number

The TChart OnPageChange event may be used to show the user the existing page number. Here using a Label for the Page number:

Label1.Caption := IntToStr(Chart1.Page) + ' of ' + IntToStr(Chart1.Numpages);

Printing a multipage Chart

To print a multipage Chart use the Chart PrintPages method.

procedure TPrintPagesForm.Button1Click(Sender: TObject);
begin
  With PrintDialog1 do
  begin
    FromPage:=1;
    ToPage:=Chart1.NumPages;
    MinPage:=FromPage;
    MaxPage:=ToPage;
    if Execute then Chart1.PrintPages(FromPage,ToPage);
  end;
end;

Print-previewing a multipage Chart

Multipage Charts may be print previewed whilst being navigated. Simply set the Previewer's Panel property to the Chart which you wish to view then use the TChartPageNavigator component to page the Chart.
