Bug 831 - Patterns in Bar Series
Summary: Patterns in Bar Series
Status: CONFIRMED
Alias: None
Product: HTML5 JavaScript TeeChart
Classification: Unclassified
Component: Series (show other bugs)
Version: unspecified
Hardware: PC Windows
: High enhancement
Target Milestone: ---
Assignee: Steema Issue Manager
URL: http://www.teechart.net/support/viewt...
Keywords:
Depends on:
Blocks:

Reported: 2014-07-08 07:30 EDT by yeray alonso
Modified: 2015-06-02 03:39 EDT (History)
1 user (show)

See Also:
Chart Series: ---
Delphi / C++ Builder RAD IDE Version:

Attachments
Hover doesn't still work (82.84 KB, image/png)
2014-07-09 03:38 EDT, yeray alonso 		Details
View All Add an attachment (proposed patch, testcase, etc.)

Note You need to log in before you can comment on or make changes to this bug.
Description yeray alonso 2014-07-08 07:30:27 EDT
The patterns work for the Area series:

  series1 = Chart1.addSeries(new Tee.Area()).addRandom();
  series1.colorEach=false;
  series1.format.image.url="./images/metal.jpg";
  series1.format.gradient.visible=false;


But not for the Bar series:

  series1 = Chart1.addSeries(new Tee.Bar()).addRandom();
  series1.colorEach=false;
  series1.format.image.url="./images/metal.jpg";
  series1.format.gradient.visible=false;

The Bar series calls c.fill and should use f.draw to support patterns.
Comment 1 yeray alonso 2014-07-09 03:38:37 EDT
Created attachment 240 [details]

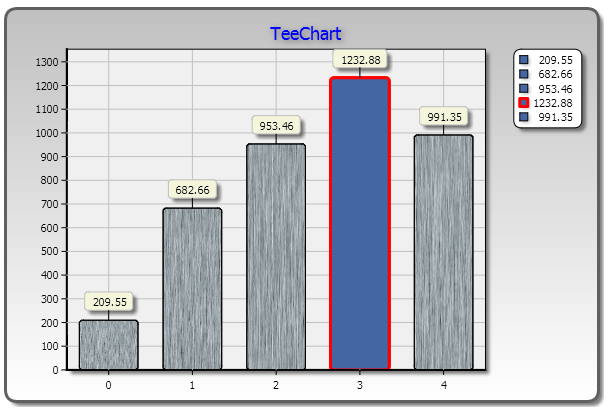

Hover doesn't still work

A few changes have been made to the sources to support this.
However, the hover doesn't respect the pattern.
See the attached image showing how it looks.
Comment 2 yeray alonso 2014-08-13 10:53:52 EDT
I reopen this because a customer made me notice the current implementation is stretched to the bar rectangle while it should be tiled to serve as a pattern.
