Bug 2574 - Enable custom values for Smith Series impedance (Z) and reactance (X)
Summary: Enable custom values for Smith Series impedance (Z) and reactance (X)
Status: CONFIRMED
Alias: None
Product: .NET TeeChart
Classification: Unclassified
Component: Series (show other bugs)
Version: unspecified
Hardware: PC Windows
: --- enhancement
Target Milestone: ---
Assignee: Steema Issue Manager
URL:
Keywords:
Depends on:
Blocks:

Reported: 2022-12-01 06:06 EST by christopher ireland
Modified: 2022-12-01 06:20 EST (History)
0 users

See Also:
Chart Series: ---
Delphi / C++ Builder RAD IDE Version:

Attachments
Target Smith Chart (107.36 KB, image/png)
2022-12-01 06:06 EST, christopher ireland 		Details
View All Add an attachment (proposed patch, testcase, etc.)

Note You need to log in before you can comment on or make changes to this bug.
Description christopher ireland 2022-12-01 06:06:00 EST
Created attachment 1025 [details]

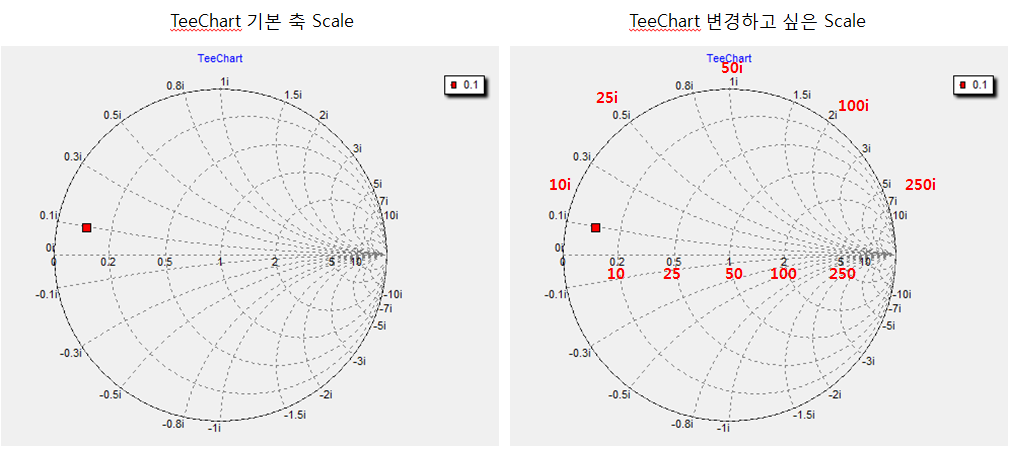

Target Smith Chart

Request to draw a Smith Chart as per the attachment.

This Smith Chart means substituting the present defaultX and defaultR values with the new values in question, but also means modifying the algorithm we use to calculate the screen position values.
