Bug 2355 - Left axis labels inside the chart when rotated
Summary: Left axis labels inside the chart when rotated
Status: CONFIRMED
Alias: None
Product: VCL TeeChart
Classification: Unclassified
Component: Axis (show other bugs)
Version: 29.200113
Hardware: PC Windows
: --- enhancement
Target Milestone: ---
Assignee: Steema Issue Manager
URL:
Keywords:
Depends on:
Blocks:

Reported: 2020-07-27 06:18 EDT by yeray alonso
Modified: 2020-07-27 06:18 EDT (History)
1 user (show)

See Also:
Chart Series: ---
Delphi / C++ Builder RAD IDE Version:

Attachments
screenshot (75.45 KB, image/png)
2020-07-27 06:18 EDT, yeray alonso 		Details
View All Add an attachment (proposed patch, testcase, etc.)

Note You need to log in before you can comment on or make changes to this bug.
Description yeray alonso 2020-07-27 06:18:25 EDT
Created attachment 944 [details]
screenshot

Rotating a non-orthogonal chart, the left axis labels are drawn inside the Chart and they are difficult to read.

This appeared in TeeChart v2013.09 ans is still reproducible in v2020.30.

  Chart1.Aspect.Zoom:=70;
  Chart1.Chart3DPercent:=50;
  Chart1.Aspect.Rotation:=300;
  Chart1.Aspect.Orthogonal:=False;
  Chart1.Legend.Hide;
  Chart1.Axes.Bottom.Increment:=2;
  Chart1.Axes.Left.Increment:=0.2;
  Chart1.Axes.Bottom.LabelsFont.Size:=10;
  Chart1.Axes.Left.LabelsFont.Size:=10;
  Chart1.AddSeries(TSurfaceSeries).FillSampleValues;

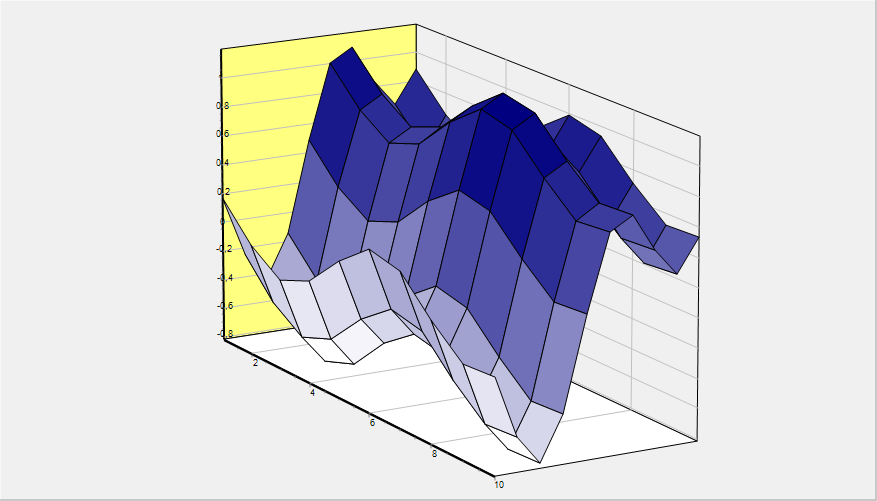

See the screenshot attached.
